Home >> Genesis >> 2021 >> G80 3.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (3 Of 9) >> DTC P013F-00: O2 Sensor Delayed Response - Lean To Rich Bank 1 Sensor 2 >> Troubleshooting >> Diagnostic Flow-chart

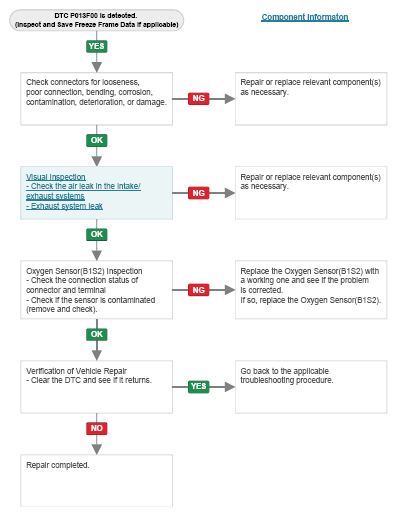

Diagnostic Flow-chart

G15569636Courtesy of HYUNDAI MOTOR AMERICA
