Mike's Workshop Manuals: Service manuals for every vehicle
Home >> Genesis >> 2021 >> G80 3.5T, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (3 Of 9) >> DTC P013D-00: O2 Sensor Slow Response - Lean To Rich Bank 2 Sensor 2 >> Troubleshooting >> Diagnostic Flow-chart

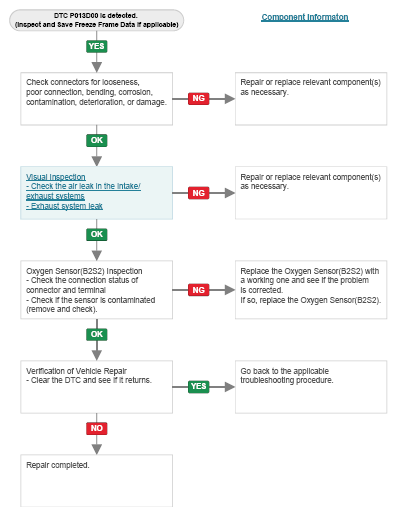

Diagnostic Flow-chart

G15569634Courtesy of HYUNDAI MOTOR AMERICA
