Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to REPAIR PROCEDURES  Fuel Delivery System - "Fuel Pump")

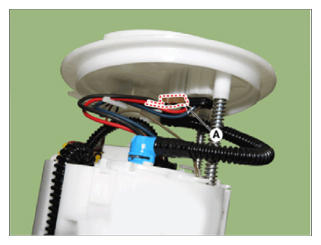

  2. Disconnect the fuel sender connector (A).
    G15557182Courtesy of HYUNDAI MOTOR AMERICA

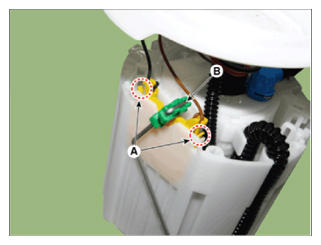

  3. Remove the fuel sender (B) after releasing the fixing hooks (A).
G15557183Courtesy of HYUNDAI MOTOR AMERICA
G15557184Courtesy of HYUNDAI MOTOR AMERICA
