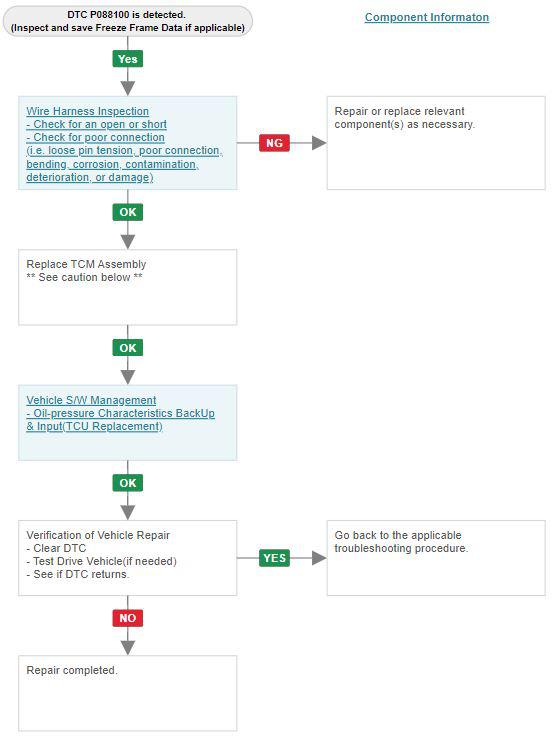

Diagnostic Flow-chart

G15569484Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: When the TCM is replaced, make sure to use the S/W Management Menu and perform all learned value options in the Engine and Transmission Sub-Menus.
