Monitor GDS Data
- Connect GDS to Data Link Connector.
- Ignition "ON" & engine "OFF".
- Select "Current Data" mode and monitor "Current Gear, Shift Lever Switch" parameter.
- Change a shift lever from P-range to D-range.
Specification:

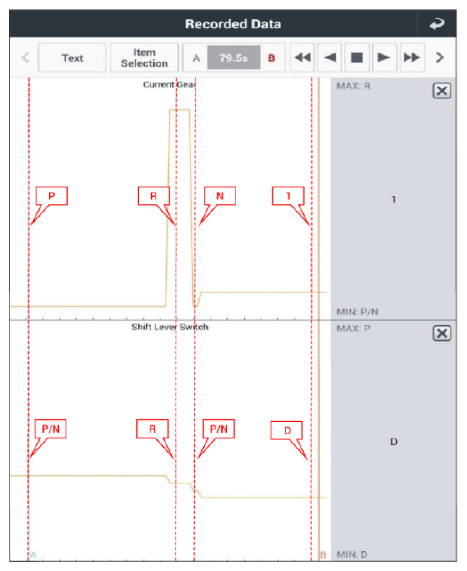

Sensor 1 and Sensor 2 Data will change when shift lever position is changed, depending on gear, refer to illustration.
