Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Disconnect the front impact sensor connector (B) and then remove the front impact sensor (A) alter loosening the mounting bolt.

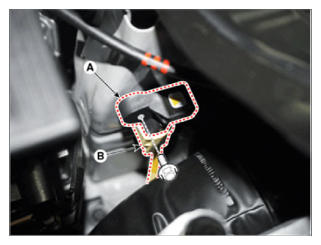

    [Driver]

    G15548890Courtesy of HYUNDAI MOTOR AMERICA

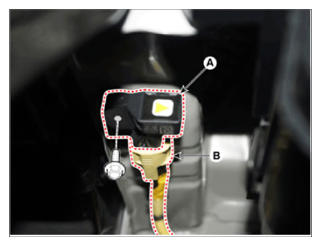

    [Passenger]

    G15548891Courtesy of HYUNDAI MOTOR AMERICA
