Driver's side

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

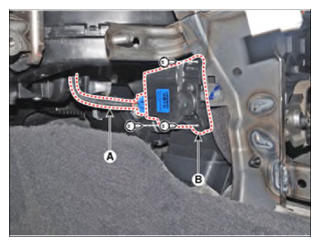

  3. Disconnect the connector (A) and then remove the driver's side temperature control actuator (B) after loosening the mounting screws.
    G15555115Courtesy of HYUNDAI MOTOR AMERICA

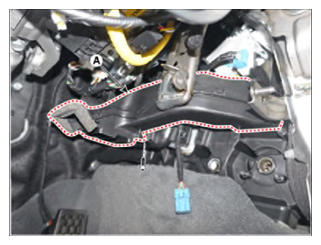

  4. Loosen the mounting screw, remove the driver's shower duct (A).
    G15555116Courtesy of HYUNDAI MOTOR AMERICA

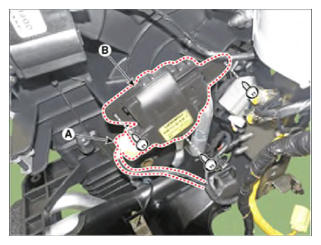

  5. Disconnect the temperature control actuator connector (A) and loosen the mounting screws, remove the temperature control actuator (B).
    G15555117Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
