Console Temperature Control Actuator

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the glove box housing cover.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING COVER ")

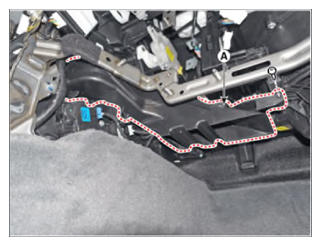

  4. Remove the passenger's side shower duct (A) after loosening the screw.
    G15555130Courtesy of HYUNDAI MOTOR AMERICA

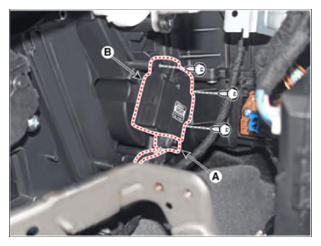

  5. Press the lock pin and disconnect the console temperature control actuator connector (A) and loosen the mounting screws, remove the console temperature actuator (B).
    G15555131Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
