Console Temperature Control Actuator (A)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the glove box housing cover.

    (Refer to Body- "GLOVE BOX HOUSING COVER ")

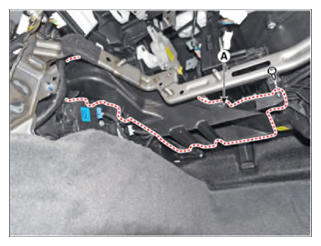

  4. Remove the passenger's side shower duct (A) after loosening the screw.
    G15555128Courtesy of HYUNDAI MOTOR AMERICA

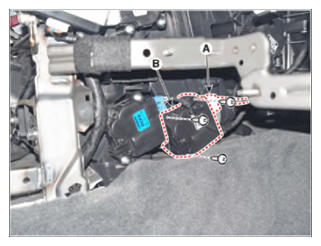

  5. Press the lock pin and disconnect the console temperature control actuator connector A (A), loosen the mounting screws and remove the console temperature control actuator A (B).
    G15555129Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
