Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

Use a plastic panel removal tool to remove interior trim pieces to prevent damage to the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.

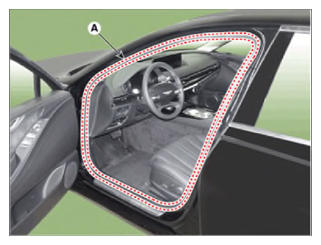

Loosen the mounting clip and remove the passenger's front door body side weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA

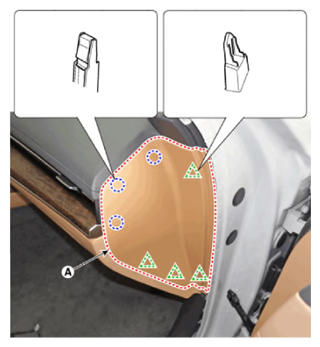

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

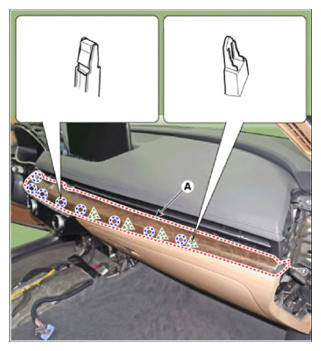

Loosen the mounting screw, using a screwdriver or remover and remove the crash pad side garnish [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

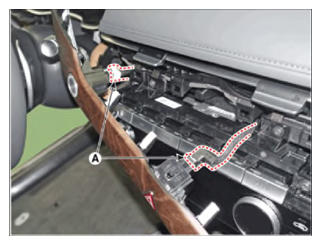

Press the lock pin and disconnect the various connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

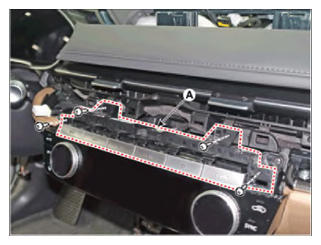

Loosen the mounting screws, remove the AVN keyboard assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

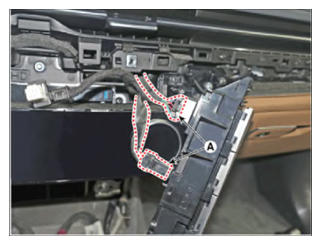

Press the lock pin and disconnect the AVN keyboard connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

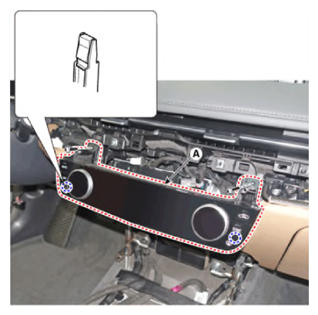

Loosen the mounting screws, remove the heater & A/C control unit assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

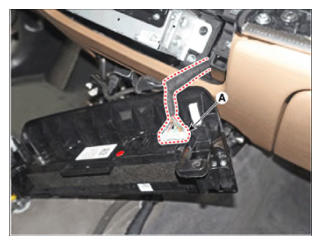

Press the lock pin and disconnect the heater & A/C control unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
