Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX ")

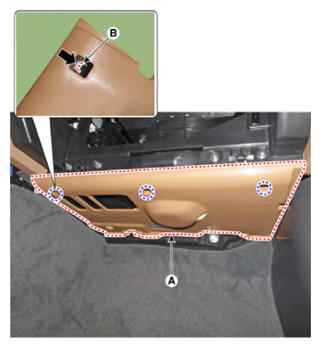

  3. Press the lock pin by direction arrow and using a screwdriver or remover and remove the crash pad under cover (A).
    G15555190Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the under lamp connector (A).
    G15555191Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the glove box housing cover.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING COVER ")

  6. Loosen the mounting screw, remove the passenger's shower duct (A).
    G15555192Courtesy of HYUNDAI MOTOR AMERICA

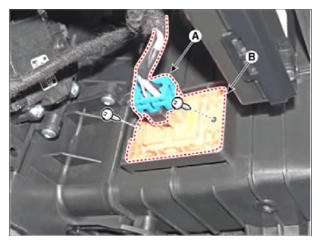

  7. Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.
    G15555193Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
