Repair Procedures: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body (Interior and Exterior) - "GLOVE BOX ")

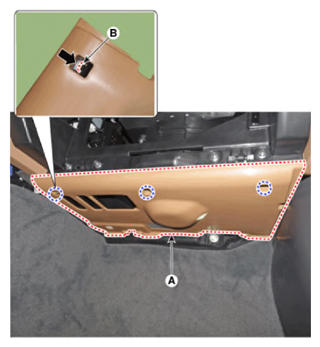

- Press the lock pin (B) by direction arrow, using a screwdriver or remover and remove the crash pad under cover (A).

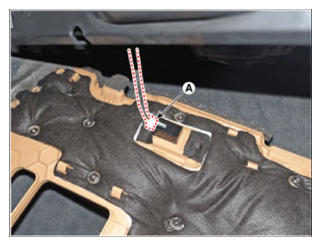

- Disconnect the under lamp connector (A).

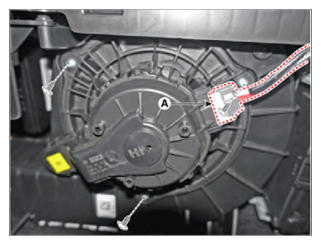

- Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
- Install in the reverse order of removal.
