Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.
  3. Disconnect the A/C pressure transducer connector (A).
    G15555041Courtesy of HYUNDAI MOTOR AMERICA

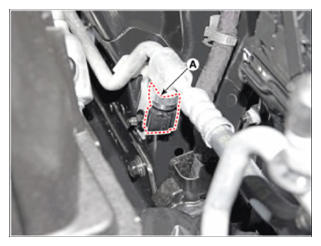

  4. Remove the A/C pressure transducer (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    G15555042Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to bend the liquid & suction pipe.
  5. Install in the reverse order of removal.
    NOTE: When installing, replace it with a new O-ring (A).
