Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the rear wheel guard.
(Refer to REPLACEMENT Body - "Rear Wheel Guard")

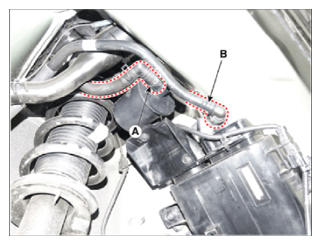

- Disconnect the vent hose quick connector (A) and vapor hose quick connector (B).

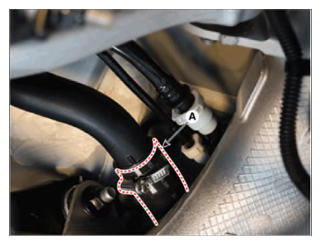

- Disconnect the fuel filler hose (A).

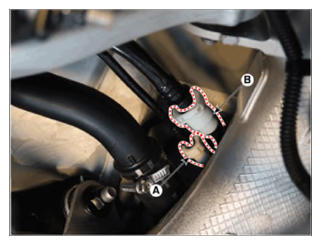

- Disconnect the vapor quick connector (A).
- Disconnect the leveling quick connector (B).

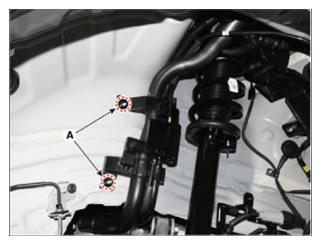

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
