Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Open the trunk.

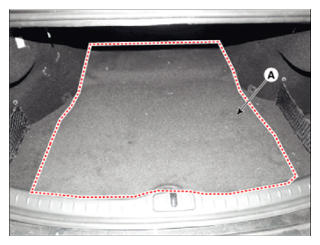

Remove the luggage covering mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

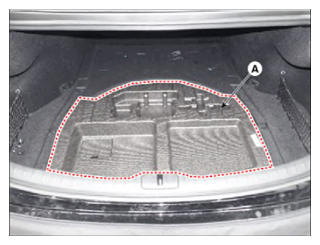

Remove the luggage center tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

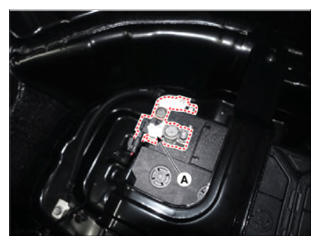

Disconnect the battery negative terminal (A).
Tightening torque:

5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

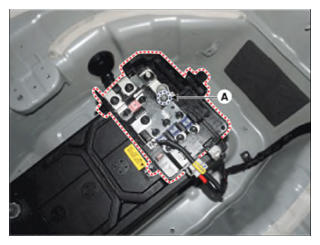

Disconnect the battery positive terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

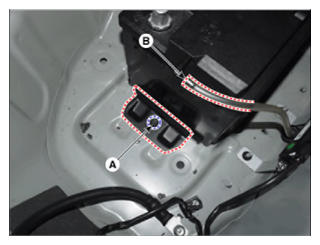

After remove the battery mounting bracket (A) and the bent hose (B), remove the battery.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
