Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

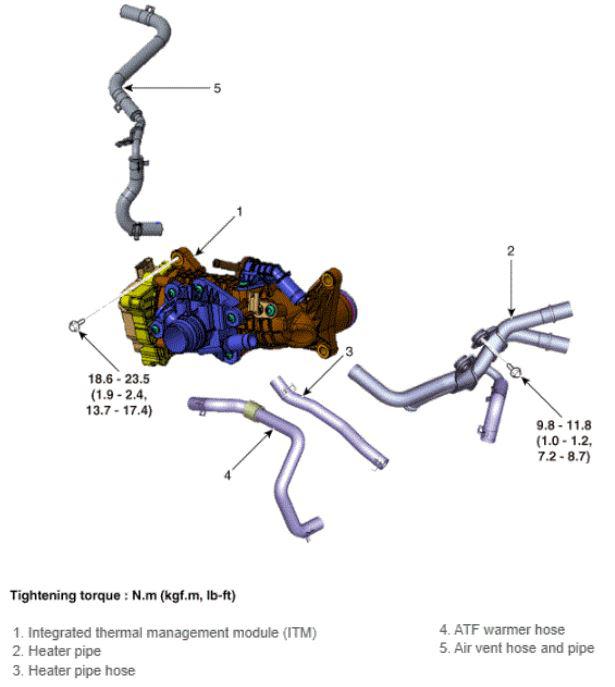

Fig 1: Integrated Thermal Management Module (ITM) Components Location With Torque Specification
G15555839Courtesy of HYUNDAI MOTOR AMERICA
