Components Location

WARNING: This page is about a different variant/trim than selected.

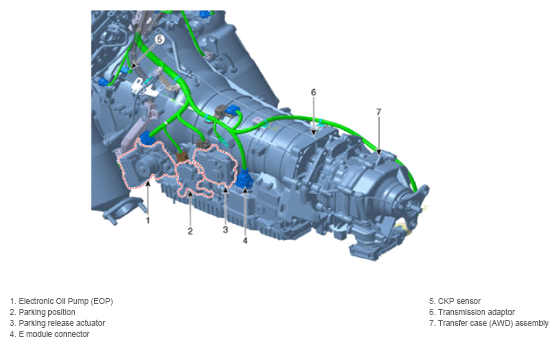

G15547620Courtesy of HYUNDAI MOTOR AMERICA
