Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (3 Of 6) >> DTC P0300-00: Random/Multiple Cylinder Misfire Detected >> Troubleshooting >> Diagnostic Flow-chart

Diagnostic Flow-chart

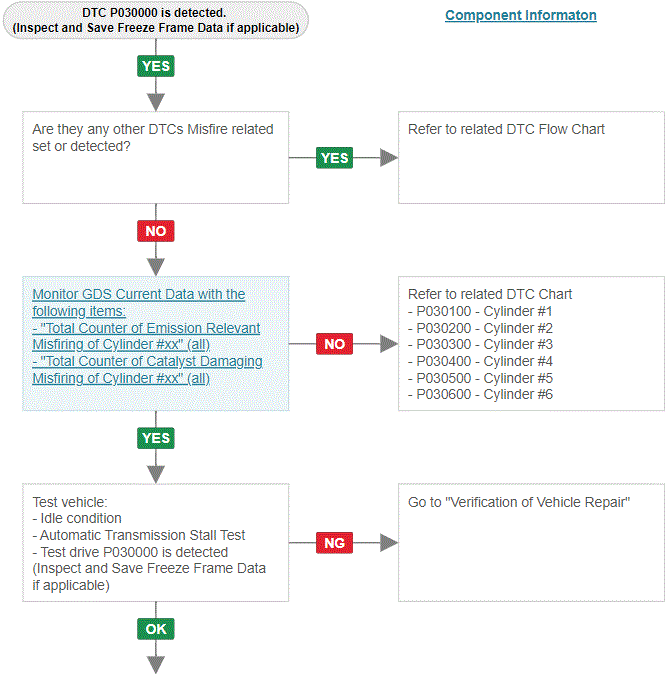

Fig 1: 1 Of 3
G15556212Courtesy of HYUNDAI MOTOR AMERICA

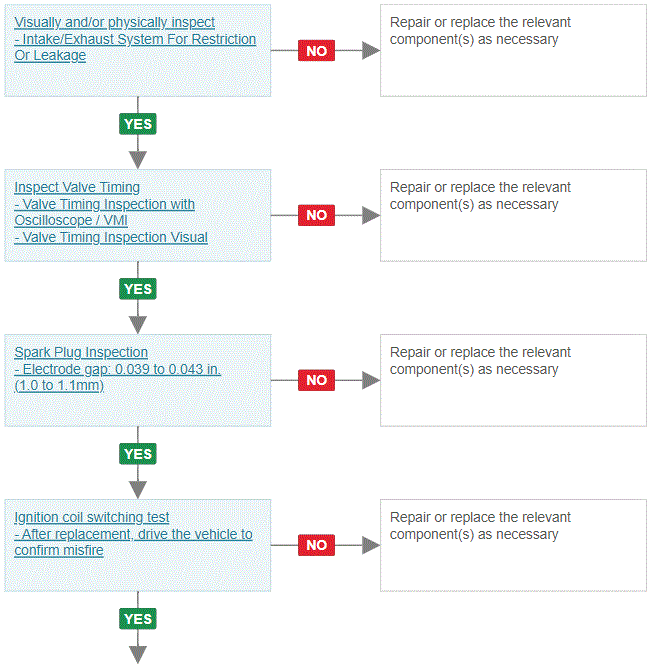

Fig 2: 2 Of 3
G00638608Courtesy of HYUNDAI MOTOR AMERICA

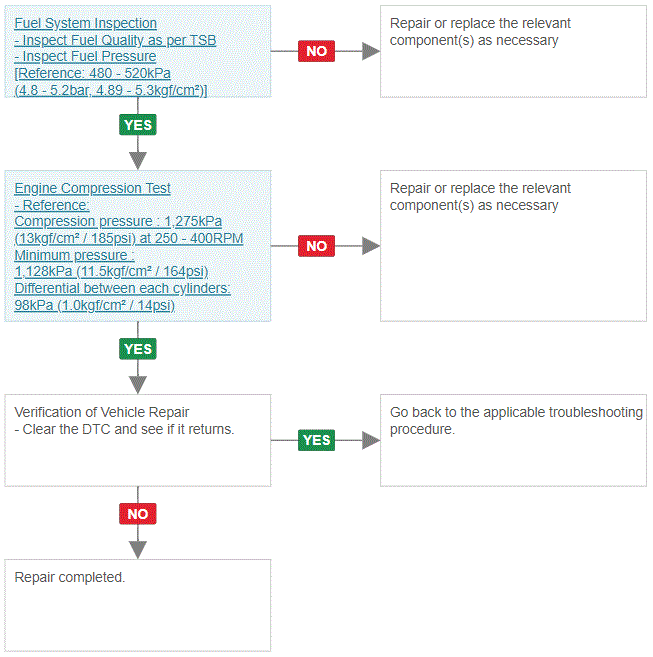

Fig 3: 3 Of 3
G00638609Courtesy of HYUNDAI MOTOR AMERICA
