Components And Components Location: Components

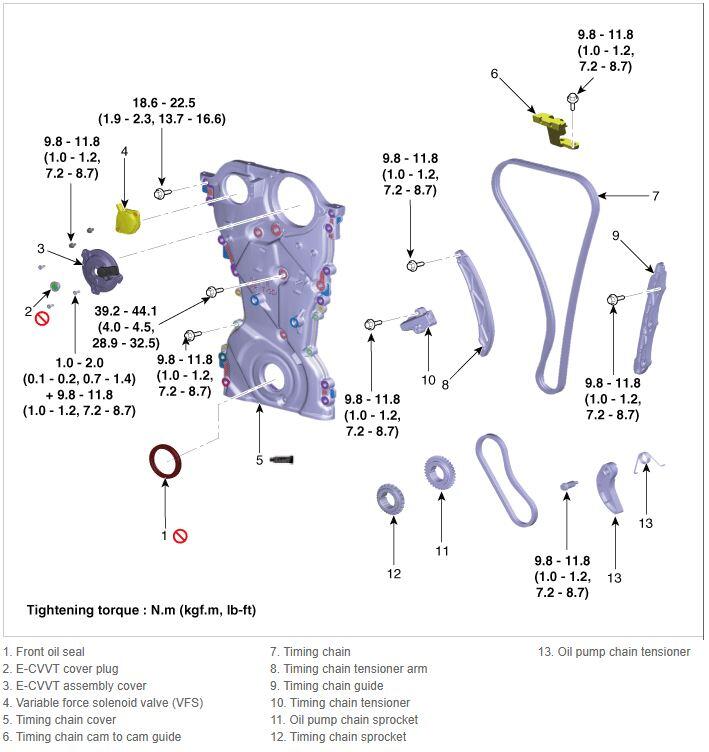

Fig 1: Timing Chain Components Location With Torque Specifications

G15546748

Courtesy of HYUNDAI MOTOR AMERICA
