Components And Components Location: Components

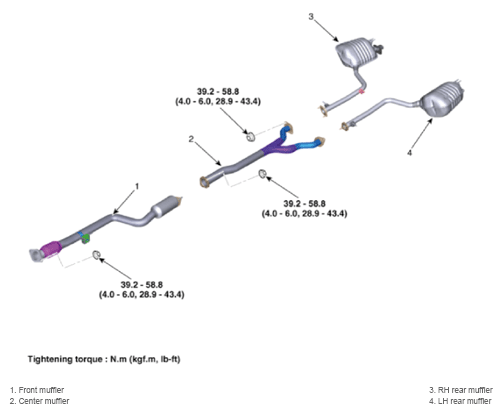

Fig 1: Muffler Components Location With Torque Specification

G15547103

Courtesy of HYUNDAI MOTOR AMERICA
