Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.5L >> Air Cleaner >> Components And Components Location >> Components

Components And Components Location: Components

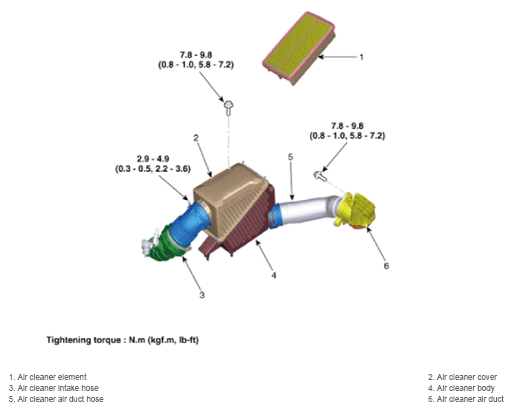

Fig 1: Air Cleaner Components Location With Torque Specification

G15547053

Courtesy of HYUNDAI MOTOR AMERICA
