Rear Power Seat Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat back assembly [RH]. (Refer to Body - "REAR SEAT ASSEMBLY ")

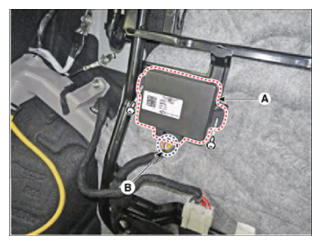

  3. Remove the rear power seat unit (A) after loosening the mounting screws and disconnecting the connector (B).
    G15550134Courtesy of HYUNDAI MOTOR AMERICA
