Front Power Seat Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly. (Refer to Body - "FRONT SEAT ASSEMBLY ")

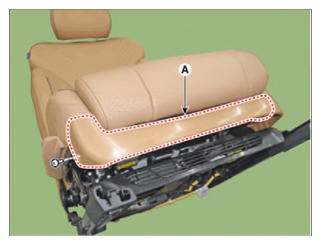

  3. Loosen the mounting screw, remove the front seat shield front cover (A).
    G15550171Courtesy of HYUNDAI MOTOR AMERICA

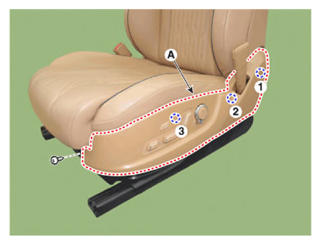

  4. After loosening the mounting screws, remove the front seat front shield outer cover (A).
    1. Using a screwdriver or remover and remove the rear hook 1.
    2. Using a screwdriver or remover and remove the anchor pretensioner side hook 2.
    3. Remove the switch side hook 3 by lifting it up.
    4. Remove the front seat outer shield cover (A) after loosen the front screws.
    CAUTION:
    • Front Seat Outer Shield When removing the cover, pay attention to the removal order and direction.
    • Be careful not to damage the hooks and brackets.
    G15550172Courtesy of HYUNDAI MOTOR AMERICA

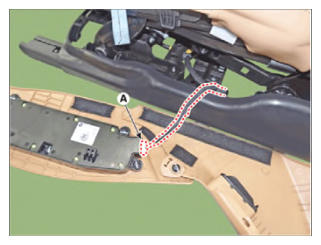

  5. Disconnect the front seat power switch connector (A).
    G15550173Courtesy of HYUNDAI MOTOR AMERICA

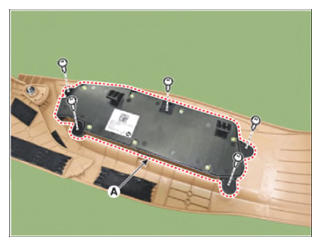

  6. Loosen the mounting screws and remove the power seat control switch (A).
    G15550174Courtesy of HYUNDAI MOTOR AMERICA
