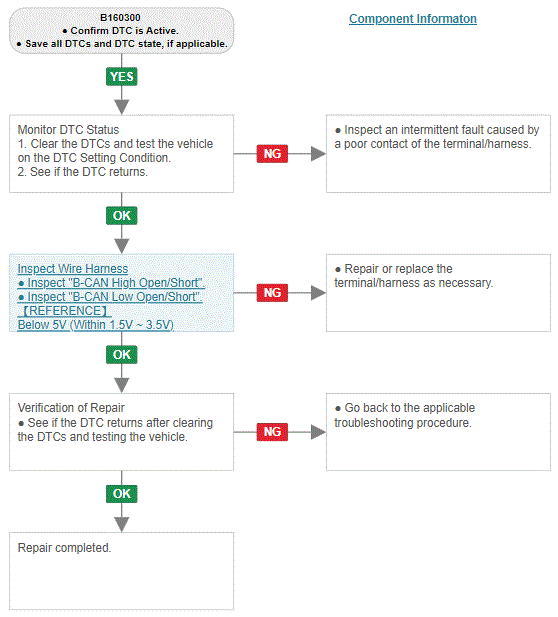

Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module Diagnosis >> DTC B1603-00: CAN Bus Off >> Troubleshooting >> Diagnostic Flow-chart
