Smartphone Key Registration Status Inspection

Smart phone key registration status can be checked through "Data Analysis".

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

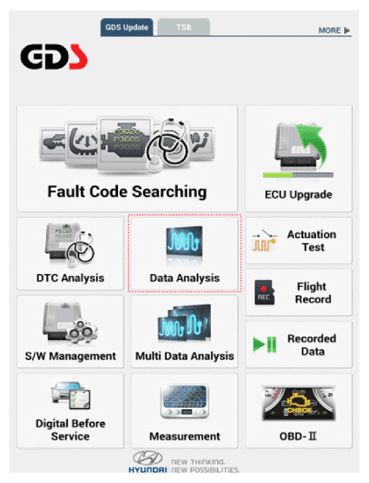

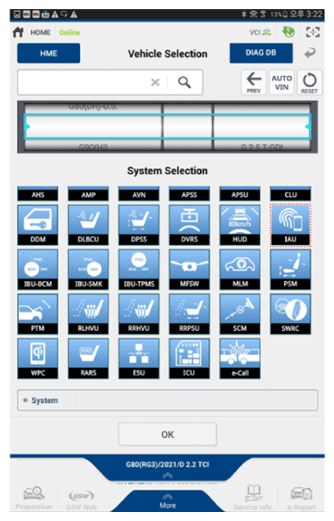

2. If check current status, select the "Data Analysis" and "IAU".

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

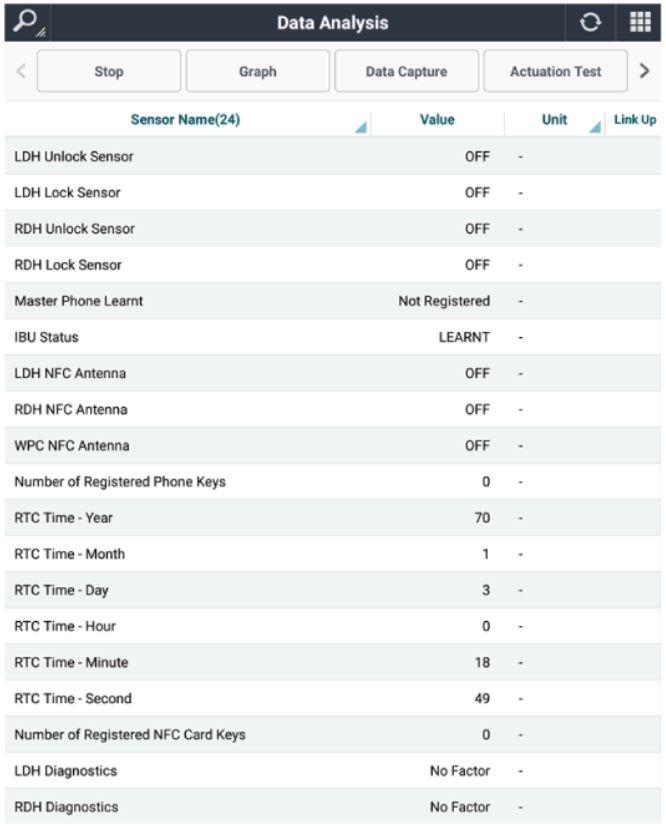

   Mark	Description
   Owner's smart phone registration state	0: Main user's smart phone is not registered.
   	1: Main user's smart phone is registered.
   Number of currently registered digital key (smartphones)	0: No registered phone
   	1-4: Currently registered device number
