NFC Key Card registration status Inspection

NFC key card registration status can be checked through "Data Analysis".

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

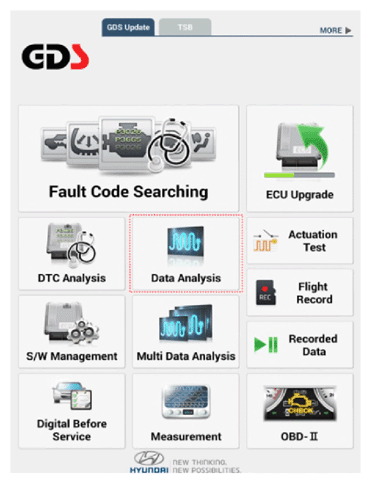

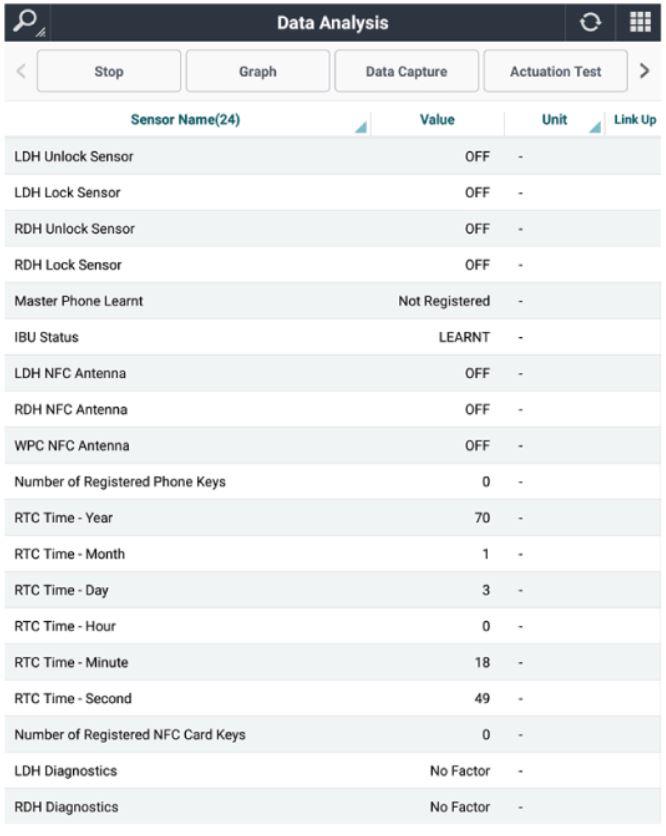

2. If check current status, select the "Data Analysis" and "IAU".

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Mark	Description
   Number of currently registered digital key (card key)	0: No registered card
   	1: 1 registered card
