Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console. (Refer to REMOVAL Body - "Over Head Console Lamp")

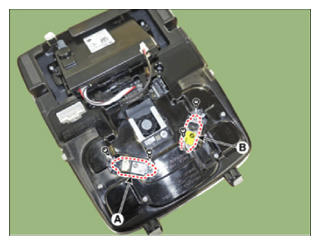

  3. Remove the hands-free mic (A) and (B) after loosening the mounting screws.
    G15550020Courtesy of HYUNDAI MOTOR AMERICA
