Repair Procedures: Removal

CAUTION:
  • When removing with the screwdriver or remover, wrap the protective tape on the tools.
  • Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & air conditioning control unit.

    (Refer to Body - "HEATER & A/C CONTROL UNIT (DATC) ")

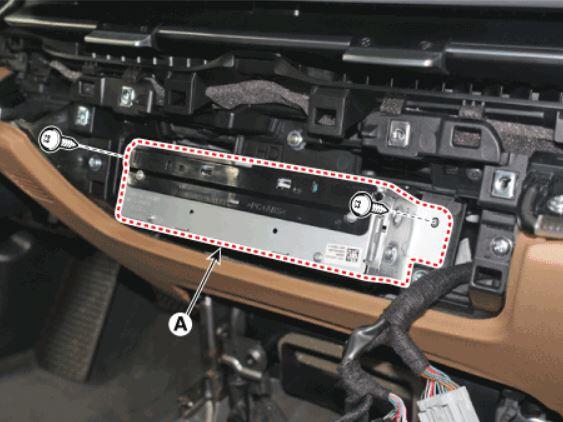

  3. Loosen the mounting screws and remove the AVN Head unit (A).
    G15555384Courtesy of HYUNDAI MOTOR AMERICA

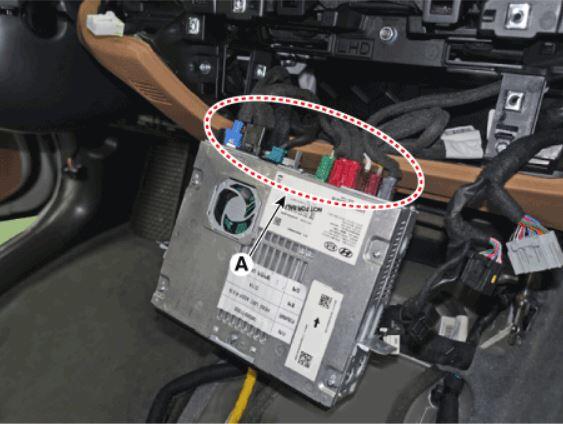

  4. Disconnect the AVN Head unit connectors (A).
    G15555385Courtesy of HYUNDAI MOTOR AMERICA
