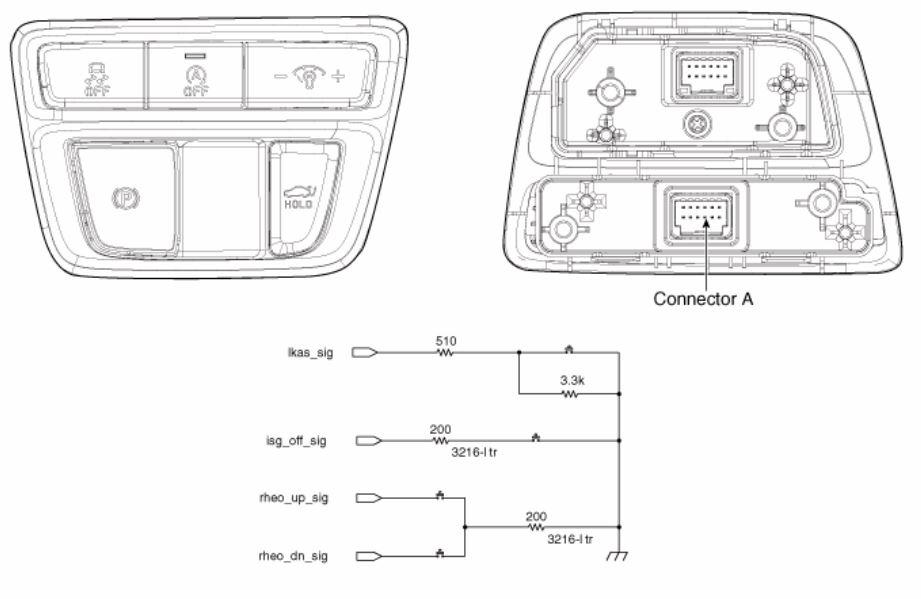

Circuit Diagram

G15555264Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Descriptor!
G14932236Courtesy of HYUNDAI MOTOR AMERICA
 1 IGN
2 -
3 ESC OFF
4 LKA signal
5 ISG OFF signal
6 Illumination (-)
7 Illumination (+)
8 ISG OFF indicator
9 Rheostat (Up)
10 Rheostat (Down)
11 Detent
12 Ground
