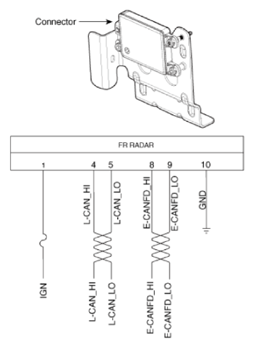

Circuit Diagram

G15555283Courtesy of HYUNDAI MOTOR AMERICA
Connector NO 1 Description
G14932237Courtesy of HYUNDAI MOTOR AMERICA
 1 IGN
2 -
3 -
4 L-CAN (High)
5 L-CAN (LOW)
6 -
7 -
8 E-CANFD (High)
9 E-CANFD (Low)
10 Ground
