FCA: Forward Collision-avoidance Assist)

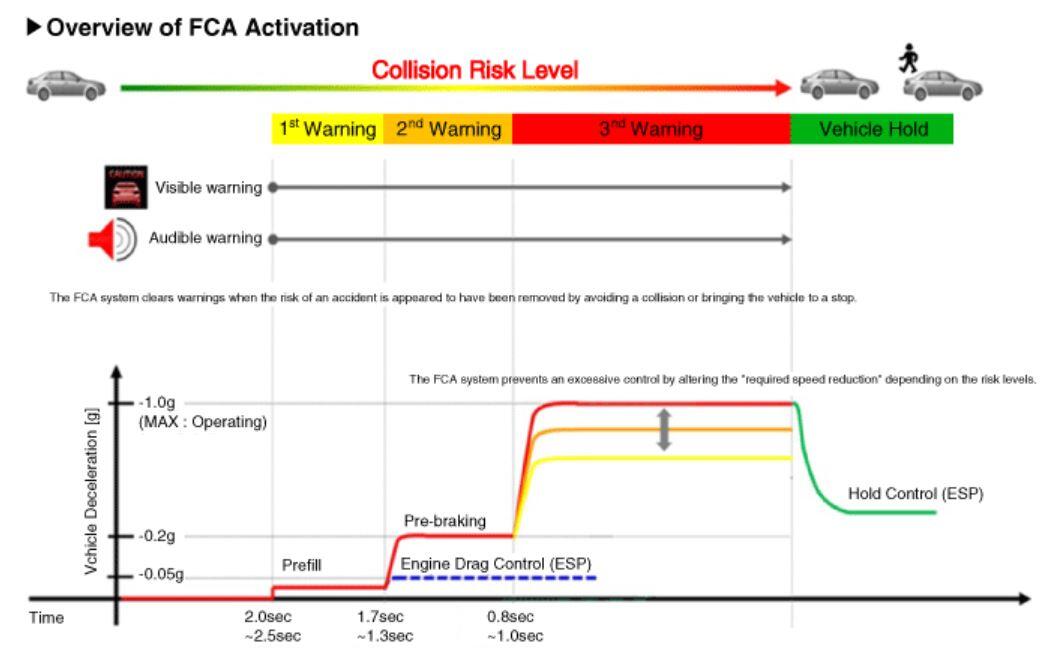

- Basic specification (front camera applied)
The time indicated will be changed according to vehicle speeds.
- Step 1: Issue a visual (display) and vocal alarm when a danger is detected.
- Step 2: Reduce engine torque and activates FCA when there is a high chance of collision.
- Step 3: Activate emergency brake when a collision is imminent.
- After stopping the vehicle: Maintain the braking control for a certain time and then release it.
Information
- Braking power is adjusted depending on the risk levels of collision, but it is released immediately when it detects the driver's action to avoid a collision.
- When it exceeded the maximum operation speed.
- When it detected driver's action to avoid a collision such as sudden steering changes.
- When the shift lever is in R or P
- When you pressed the accelerator pedal half way.
CAUTION:- When you drive at 85 km/h - 160 km/h or faster, the system does not go to step 2 of emergency braking.
- Full auto braking is not available.
- When you drive at 85 km/h or faster, the system does not go to step 3 of emergency braking.
- But a collision may occur at depending on the road conditions.
- Partial braking may be applied according to the surrounding environment.
- For the vehicle parked in front, full braking is applied at level 3 after the warning only when the vehicle speed is under 75 km/h.
Up to level 2 is performed when the vehicle speed is over 75 km/h.
- For the pedestrian and cyclists, full braking is applied at level 3 after the warning only when the vehicle speed is under 65 km/h.
Up to level 1 is performed when the vehicle speed is over 65 km/h.
- Offset should be less than 50%.
- FCA does not work on the vehicles backing up or resisting.
Information
Offset: Rate of non-overlapping on the line between the front driving car and my car
