Repair Procedures: Removal

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Remove the main crash pad assembly.

   (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

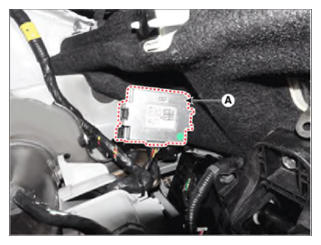

3. Loosen the mounting nuts and remove the ADAS_DRV Unit (A).

   Courtesy of HYUNDAI MOTOR AMERICA

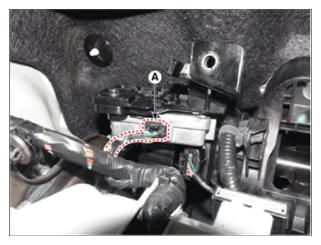

4. Disconnect the ADAS_DRV Unit connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA
