Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Driver Driving Assistance System >> ADAS Driving ECU (ADAS_DRV) >> Repair Procedures >> Installation

Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

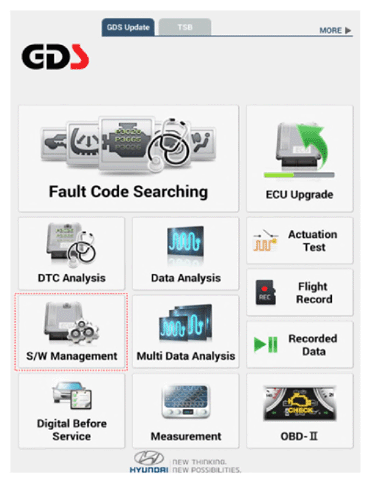

  3. Select the 'S/W Management' and 'Car model'.
    G15555431Courtesy of HYUNDAI MOTOR AMERICA

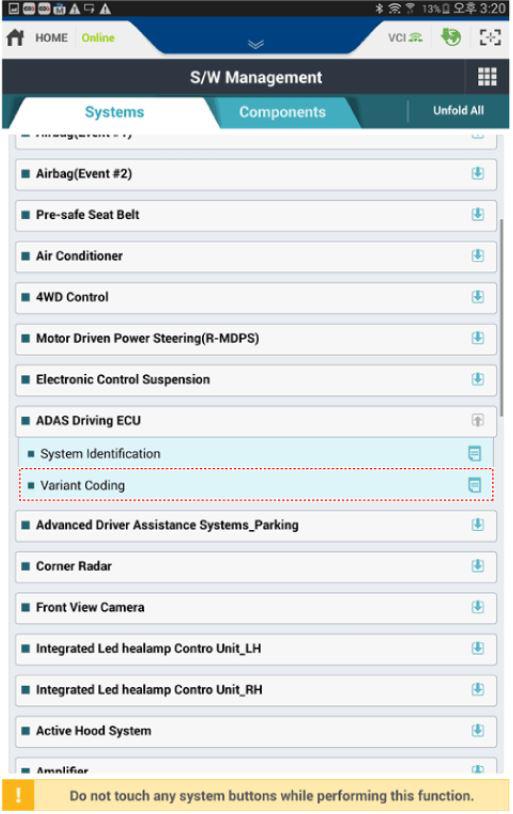

  4. Follow the on-screen instructions to perform the "variant coding" procedure.
    G15555432Courtesy of HYUNDAI MOTOR AMERICA
