Components And Components Location

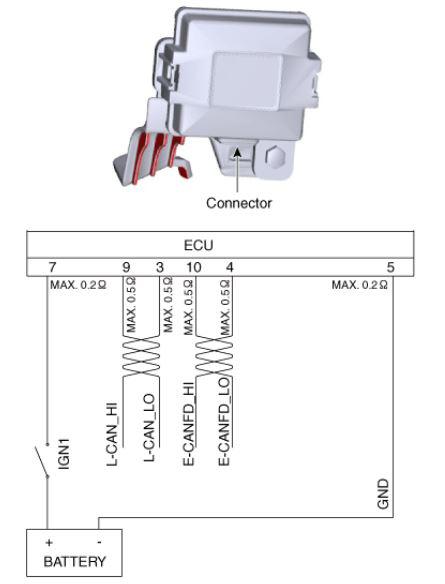

G15555428Courtesy of HYUNDAI MOTOR AMERICA
Connector I NO Description
G14932248Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 -
3 L-CAN (Low)
4 E-CAN (Low)
5 -
6 Ground
7 IGN 1
8 -
9 L-CAN (High)
10 E-CANFD (High)
11 -
12 -
