End Of Line (EOL) Input
- Overview and purpose
- The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
- Condition required for inputting the hydraulic characteristic
- In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.
- Oil-pressure characteristics (Bar code) location.
- Method for inputting the hydraulic characteristic
- In case of changing the automatic transmission assembly.

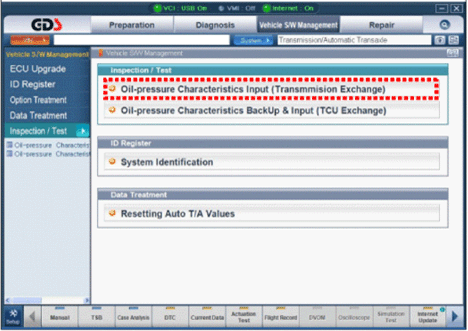

- Perform "Oil-pressure characteristics input" procedure.

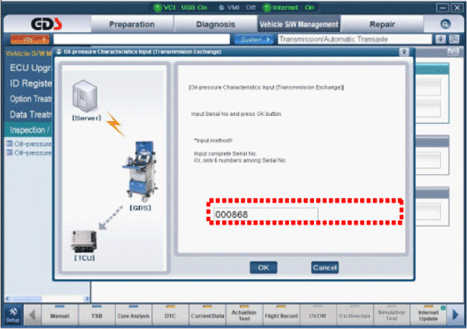

- With the Internet access (automatic mode): Input serial number of the transmission.
- Without the Internet access (manual mode): Input the oil-pressure characteristics in the bar code.

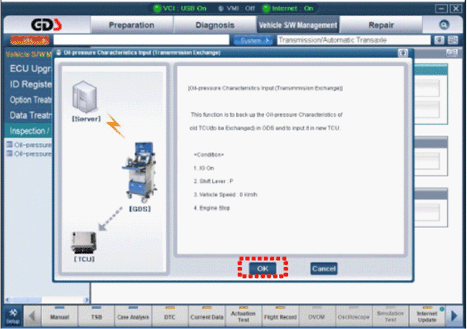

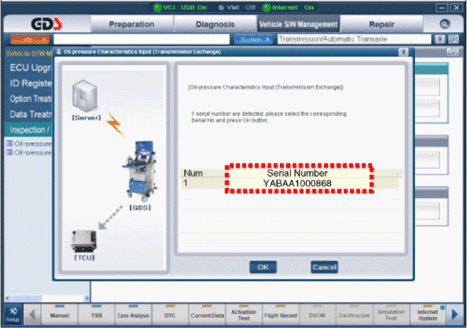

- With the Internet access (automatic mode).

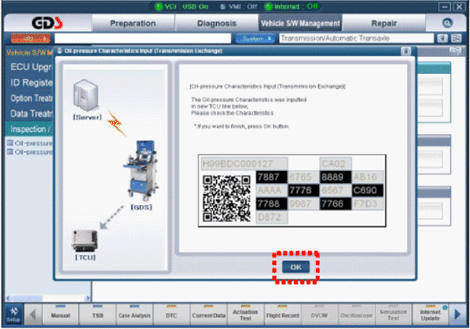

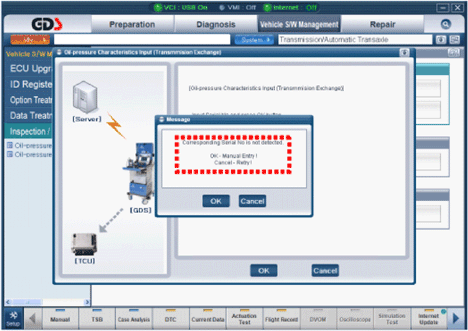

- Without the Internet access (manual mode).
- In case of changing the automatic transmission assembly.

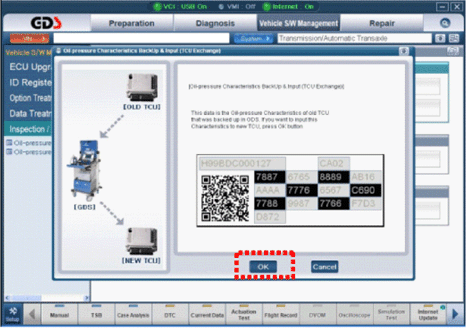

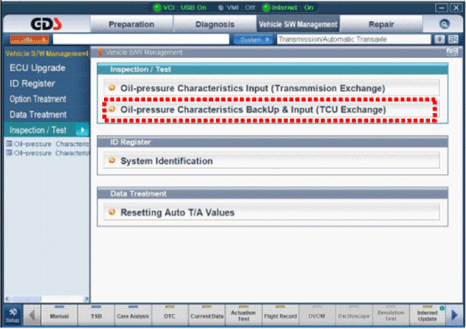

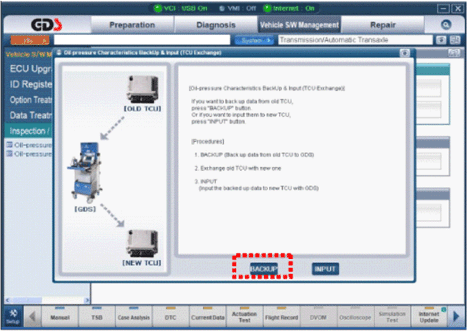

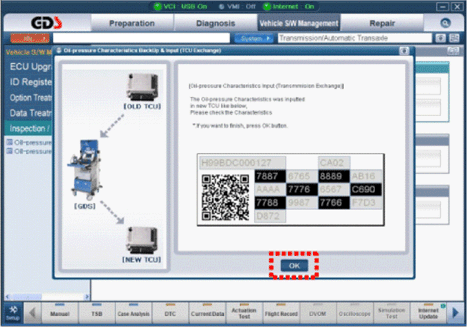

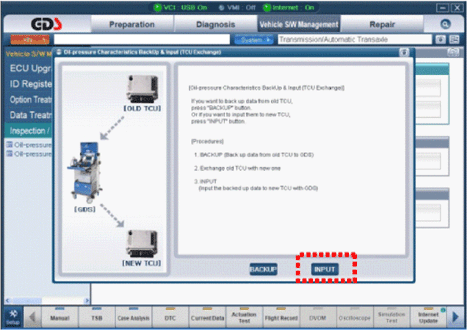

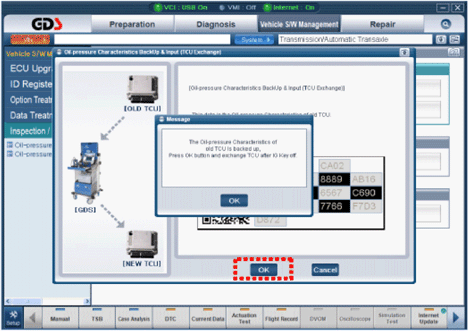

- In case of changing the TCM.
