Components And Components Location: Components

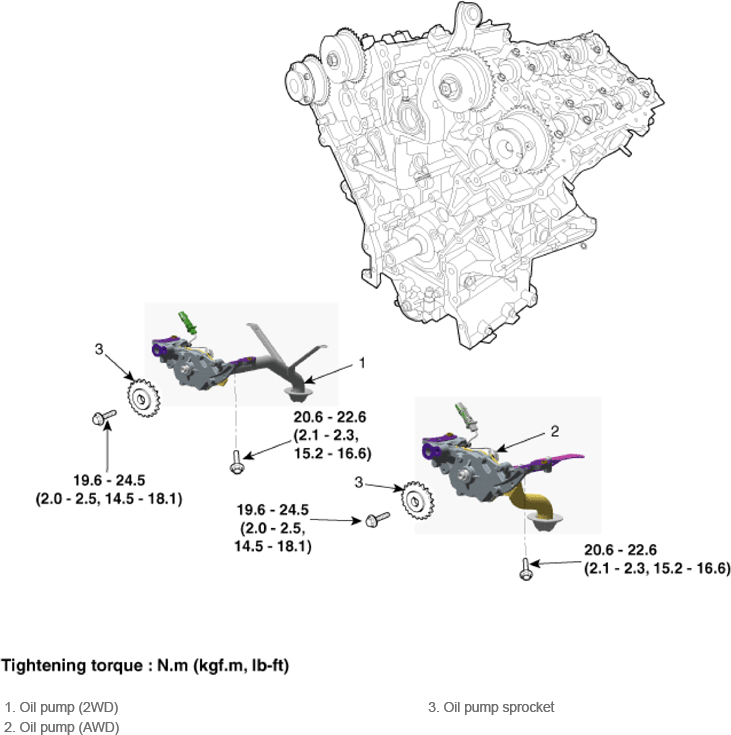

Fig 1: Oil Pump Components Location With Torque Specifications

G14178921

Courtesy of HYUNDAI MOTOR AMERICA
