Front Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

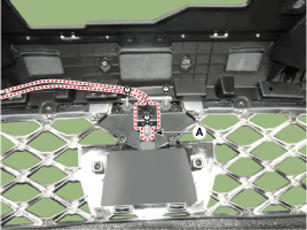

  3. Remove the pantoscopic camera after loosening the mounting screws and connector (A).
    G14178282Courtesy of HYUNDAI MOTOR AMERICA
