Components Location

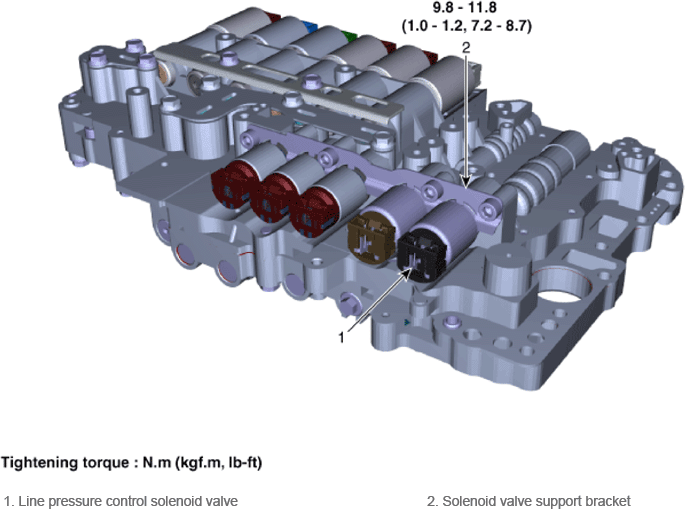

Fig 1: Line Pressure Control Solenoid Valve Components Location With Torque Specification

G14176164

Courtesy of HYUNDAI MOTOR AMERICA
