Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing cover.

    (Refer to Crash Pad - "GLOVE BOX HOUSING COVER ASSEMBLY ")

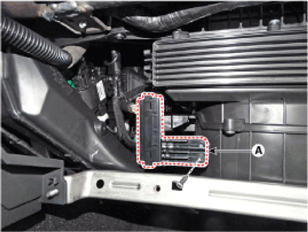

  3. Remove the heater control unit (B) after loosening the screws.
    G14178477Courtesy of HYUNDAI MOTOR AMERICA

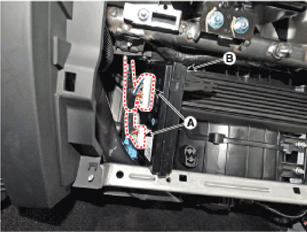

  4. Disconnect the connector (A) and then remove the heater control unit (B).
    G14178478Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
