Repair Procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

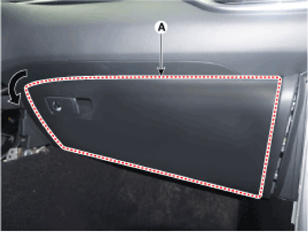

Open the glove box (A) in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

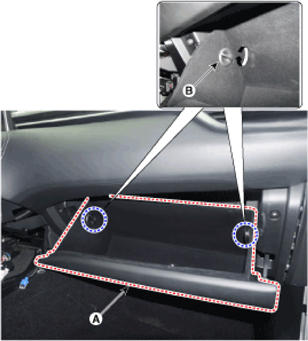

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Courtesy of HYUNDAI MOTOR AMERICA

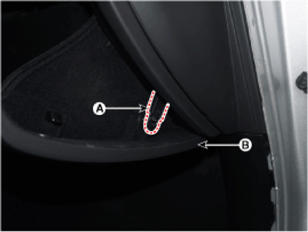

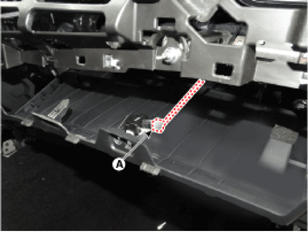

Separate the air damper (A) from the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

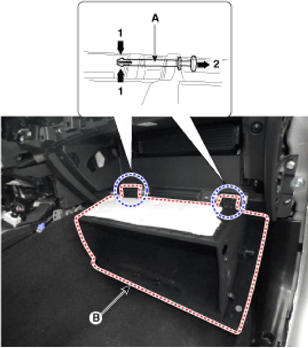

Disconnect the push-pins (A) and then remove the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

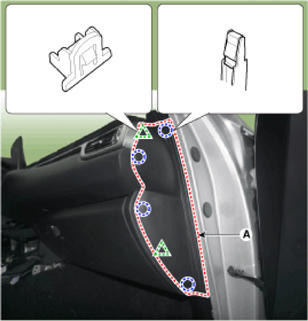

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

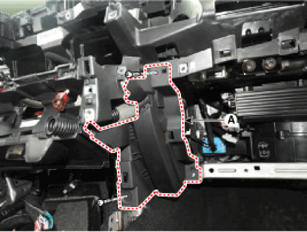

After loosening the mounting screws, remove the crash pad center panel [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

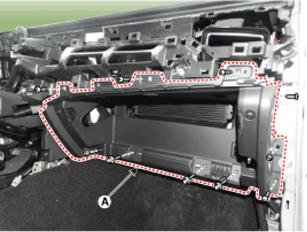

After loosening the mounting screws bolts and nuts, remove the glove box housing cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the glove box lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the lamp switch connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

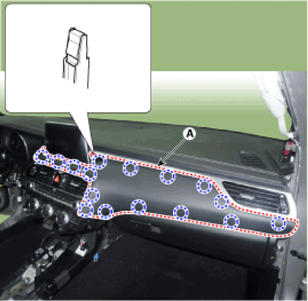

After loosening the mounting screws, remove the crash pad center panel assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

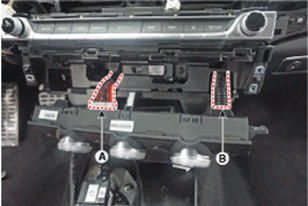

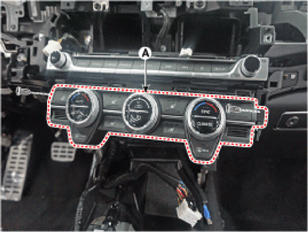

After loosening the mounting screws, remove the A/C & heater controller unit (A).

Courtesy of HYUNDAI MOTOR AMERICA

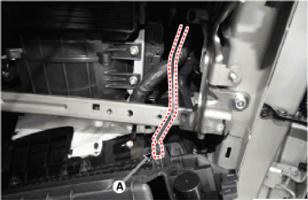

Disconnect the connector (A) and the air hose (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
