Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the starter solenoid assembly.

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the screws (A), detach the starter solenoid assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the brush holder assembly (A), rear bracket assembly (B) after loosening the mounting screws.
Remove the armature assembly (C) and yoke assembly (D).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shield (A).

Courtesy of HYUNDAI MOTOR AMERICA

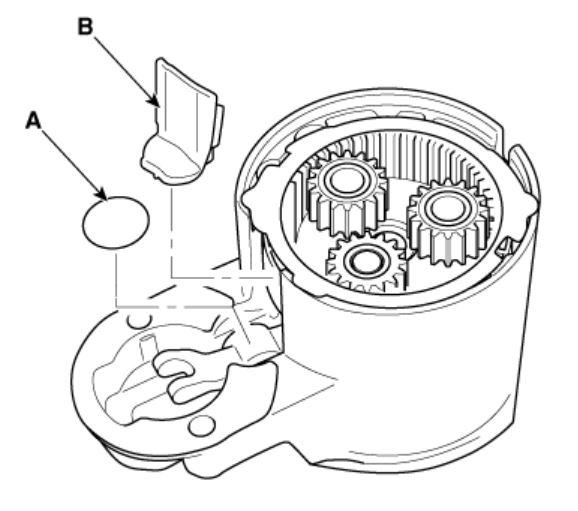

Remove the lever packing (A) and the planet gear (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Remove the clutch set assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Courtesy of HYUNDAI MOTOR AMERICA

Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the stop ring (A) using the stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Courtesy of HYUNDAI MOTOR AMERICA
