Home >> Genesis >> 2021 >> G70 2.0T, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.0L >> Intercooler >> Components And Components Location >> Components

Components And Components Location: Components

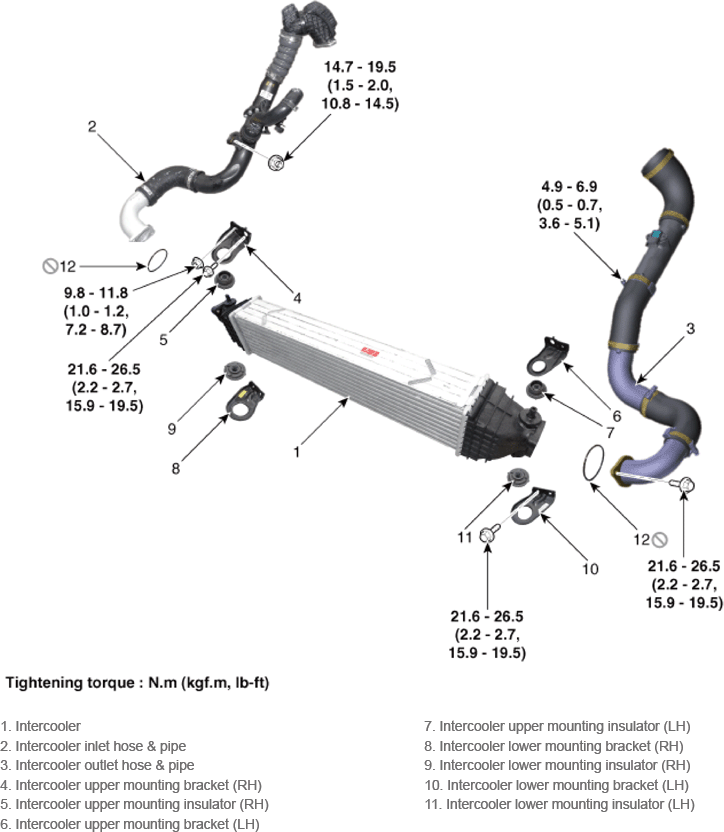

Fig 1: Intercooler Components Location With Torque Specifications

G14175258

Courtesy of HYUNDAI MOTOR AMERICA
