Signal Waveform And Data

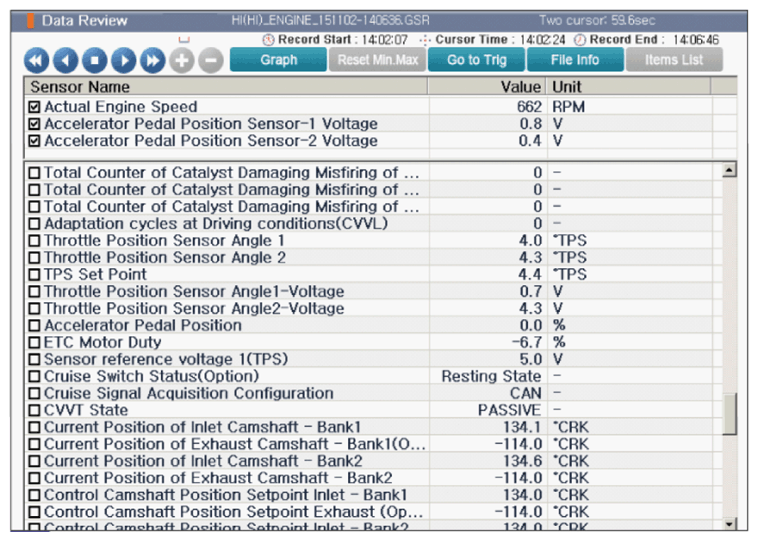

G13553287Courtesy of HYUNDAI MOTOR AMERICA
G13553288Courtesy of HYUNDAI MOTOR AMERICA

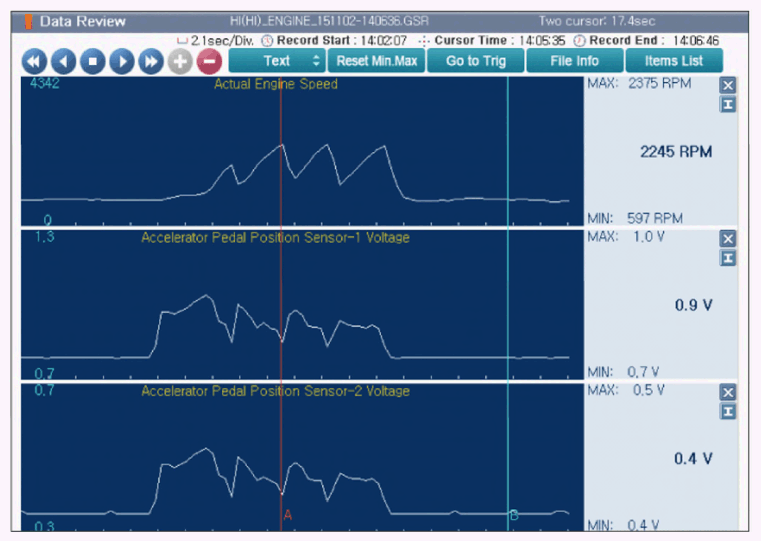

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
