[CVVT Oil Control Valve (Exhaust)]

[Bank 1]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

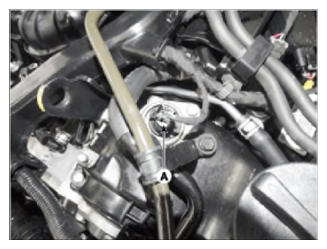

2. Disconnect the CVVT oil control valve connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Remove the cylinder head cover.

   (Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY ")

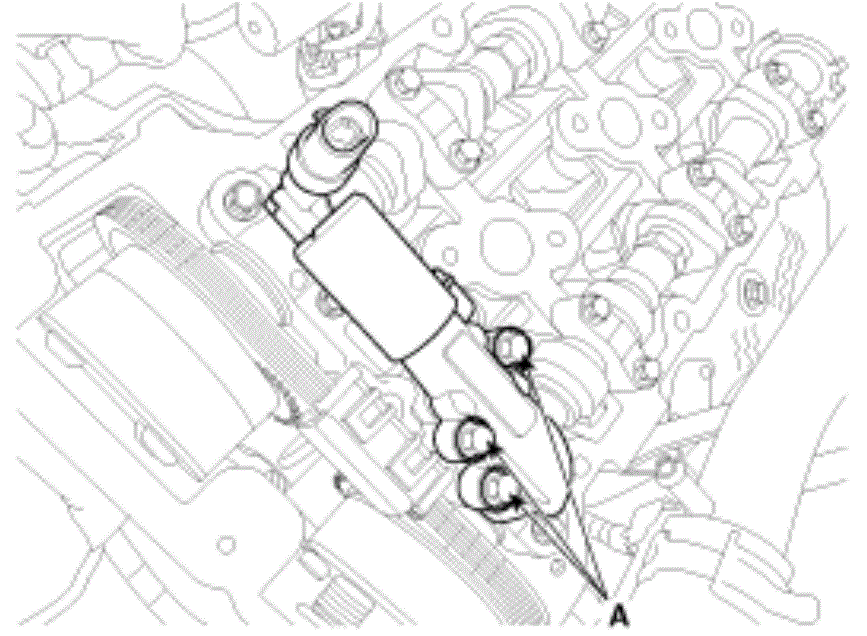

4. Remove the CVVT oil control valve from the engine, after removing the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

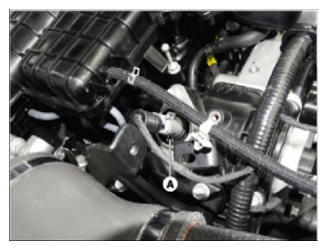

2. Disconnect the CVVT oil control valve connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Remove the cylinder head cover.

   (Refer to Engine Mechanical System - "CYLINDER HEAD ASSEMBLY ")

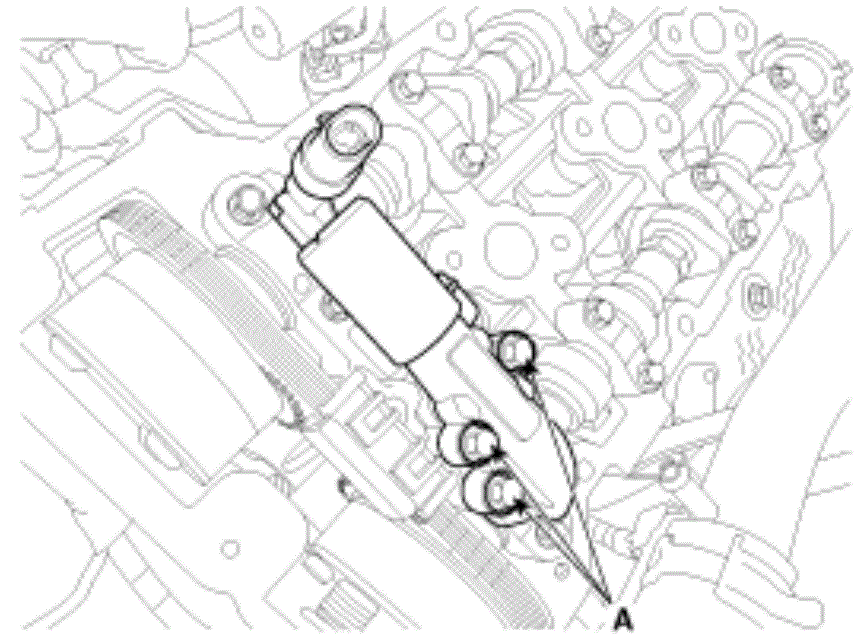

4. Remove the CVVT oil control valve from the engine, after removing the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
