Monitor GDS Data

  1. IG "ON".
  2. Connect GDS to Data Link Connector (DLC).
  3. Turn the steering wheel to the left and right.
  4. Monitor the "Steering Angle Sensor (CAN) (ESP Only)" parameter on the "Current Data"  menu of the GDS.

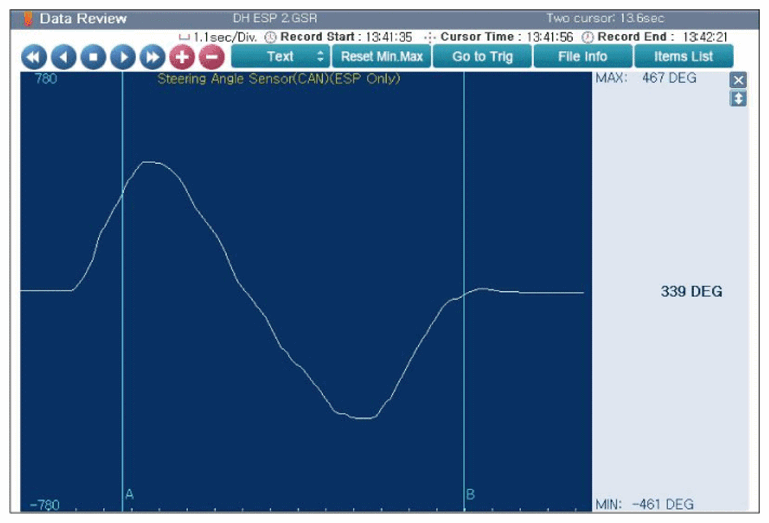

    G12654436Courtesy of HYUNDAI MOTOR AMERICA
  5. When steering wheel is turned, is the parameter changed?

    YES

    • Fault is intermittent caused by poor connection in brake light switch line and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next step.
