Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the M-terminal (A) on the magnet switch assembly (B).
    G13539150Courtesy of HYUNDAI MOTOR AMERICA
  2. After loosening the screws (A), detach the magnet switch assembly (B).
    G13539151Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the through bolts (A).
    G13539152Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the brush holder assembly (A), yoke (B) and armature (C).
    G13539153Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the lever plate (B) and lever packing (A).
    G13539154Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the packing (A) and shield (B).
    G13539155Courtesy of HYUNDAI MOTOR AMERICA
  7. Disconnect the planet gear (A).
    G13539156Courtesy of HYUNDAI MOTOR AMERICA

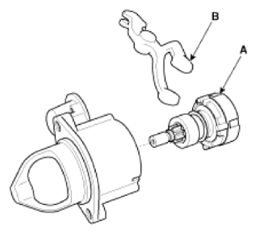

  8. Disconnect the planet shaft assembly (or reducer assembly) (A) and lever (B).
    G13539157Courtesy of HYUNDAI MOTOR AMERICA
  9. Press the stopper (A) using a socket (B).
    G13539158Courtesy of HYUNDAI MOTOR AMERICA
  10. After removing the stop ring (A) using stop ring pliers (B).
    G13539159Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the stopper (A), overrunning clutch (B), internal gear (C), planet shaft (D) and/or gasket sheet (E).
    G13539160Courtesy of HYUNDAI MOTOR AMERICA
  12. Reassembly is the reverse of disassembly.
    NOTE:
    • Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
    G13539161Courtesy of HYUNDAI MOTOR AMERICA
