Variant Coding Procedure

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

■ On-Line Type on GDS

Turn the ignition switch OFF.
Connect the GDS.
Turn the ignition switch ON without the engine running.
Select vehicle name and airbag system.
Select variant coding mode.
Follow the steps on the screen below.

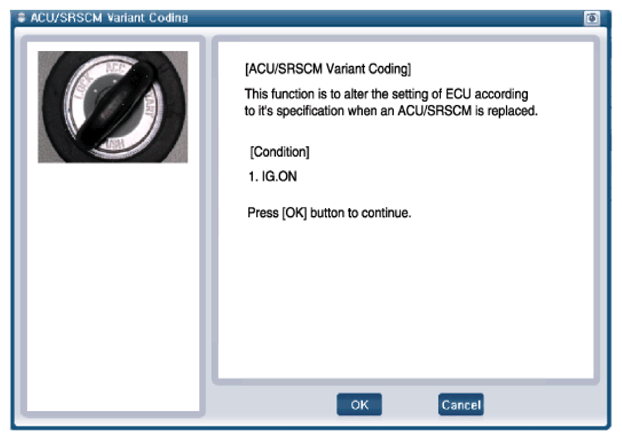

1. Initial ACU Variant Coding screen

  Fig 1: Screen Display - ACU/SRSCM Variant Coding
  Courtesy of HYUNDAI MOTOR AMERICA

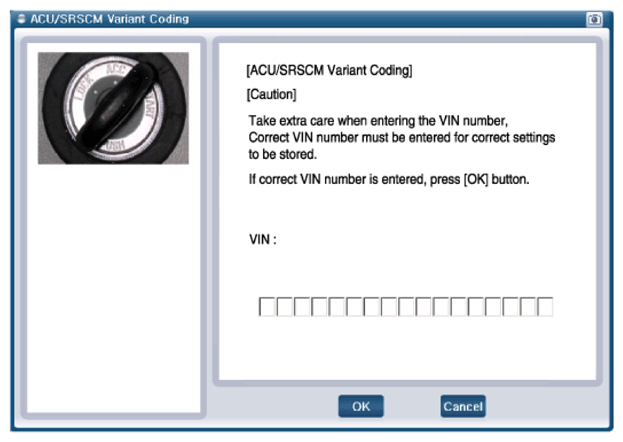

2. VIN Code entering screen

  Fig 2: Screen Display - VIN Code Entering
  Courtesy of HYUNDAI MOTOR AMERICA

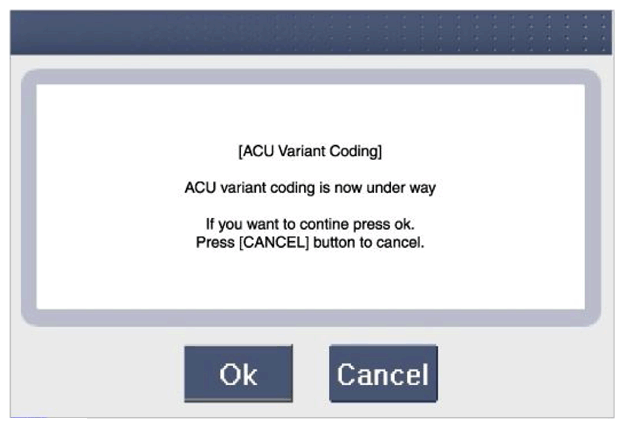

3. Variant Coding's proceeding screen-1

  Fig 3: Screen Display - ACU Variant Coding Proceeding Screen 1
  Courtesy of HYUNDAI MOTOR AMERICA
4. Variant Coding's proceeding screen-2

  Fig 4: Screen Display - ACU Variant Coding Proceeding Screen 2
  Courtesy of HYUNDAI MOTOR AMERICA

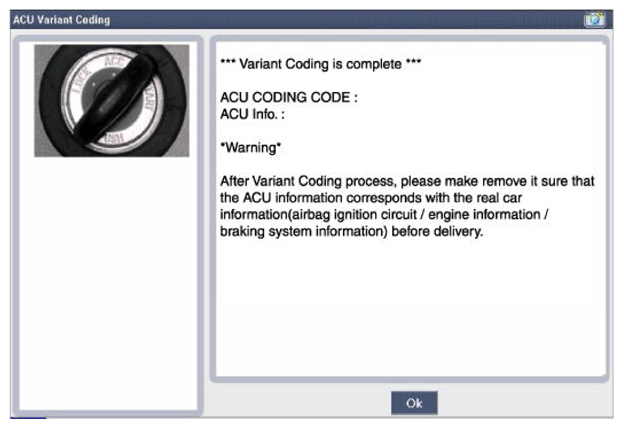

5. Variant Coding is completed

  Fig 5: Screen Display - Variant Coding Complete
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  1. This screen is displayed when you try variant coding on the SRSCM which has been performed before.

    Fig 6: Screen Display - ACU/SRSCM Variant Coding (Trying Variant Coding)
    Courtesy of HYUNDAI MOTOR AMERICA
  2. This screen is displayed when communication failure has occurred.

    Fig 7: Screen Display - ACU/SRSCM Variant Coding (Communication Failure)
    Courtesy of HYUNDAI MOTOR AMERICA

■ Off-Line Type on GDS (Use when not Connected to the Internet)

Turn the ignition switch OFF.
Connect the GDS.
Turn the ignition switch ON without the engine running.
Select vehicle name and airbag system.
Select variant coding mode.
Follow the steps on the screen below.

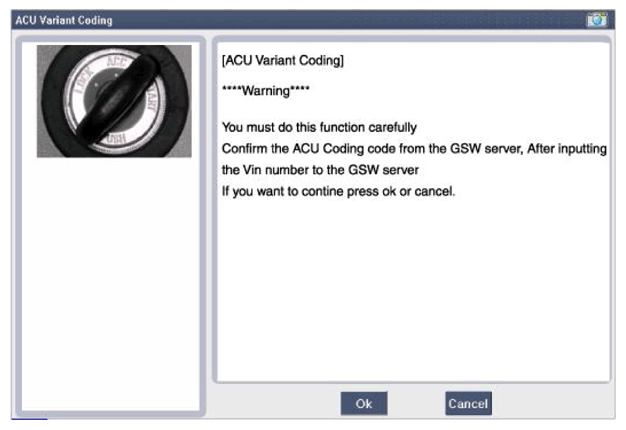

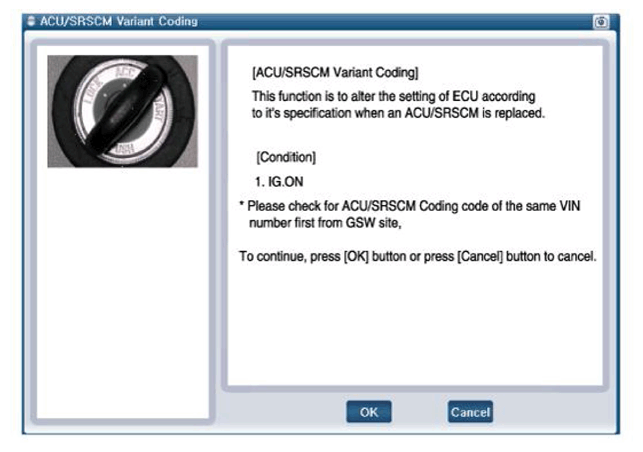

1. Initial ACU Variant Coding screen

  Fig 8: Screen Display - ACU Variant Coding
  Courtesy of HYUNDAI MOTOR AMERICA

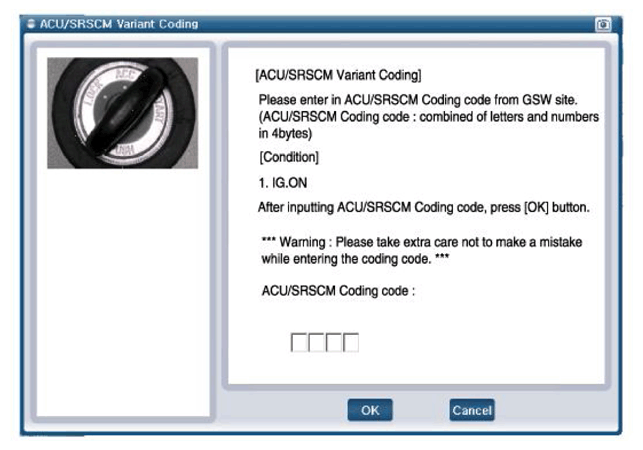

2. ACU Coding Code entering screen

  Fig 9: Screen Display - ACU/SRSCM Variant Coding
  Courtesy of HYUNDAI MOTOR AMERICA
3. Rechecking ACU Coding Code entering screen

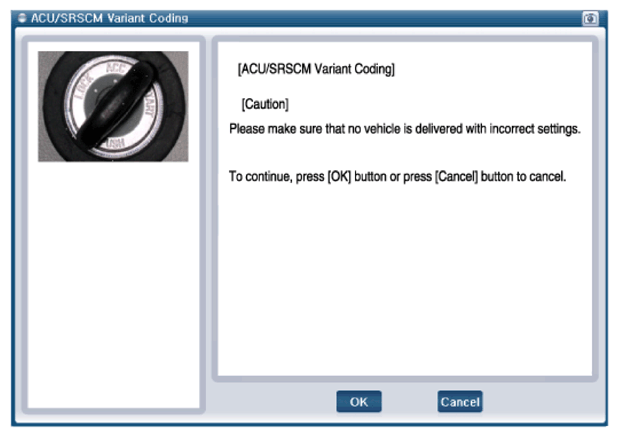

  Fig 10: Screen Display - ACU Variant Coding
  Courtesy of HYUNDAI MOTOR AMERICA

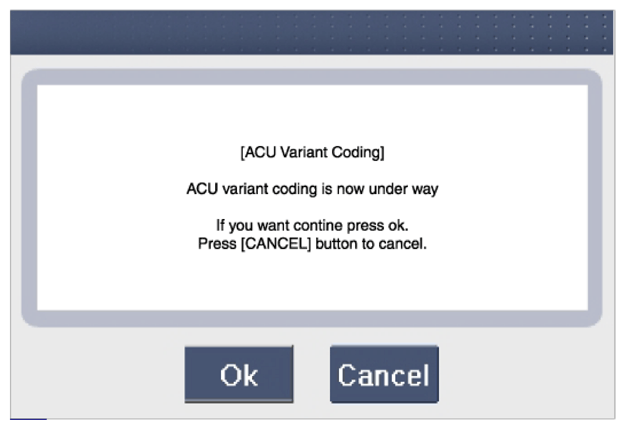

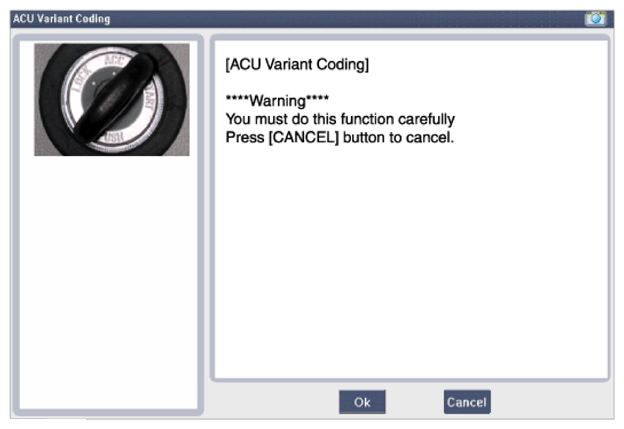

4. Variant Coding's proceeding screen-1

  Fig 11: Screen Display - ACU Variant Coding Proceeding Screen 1
  Courtesy of HYUNDAI MOTOR AMERICA

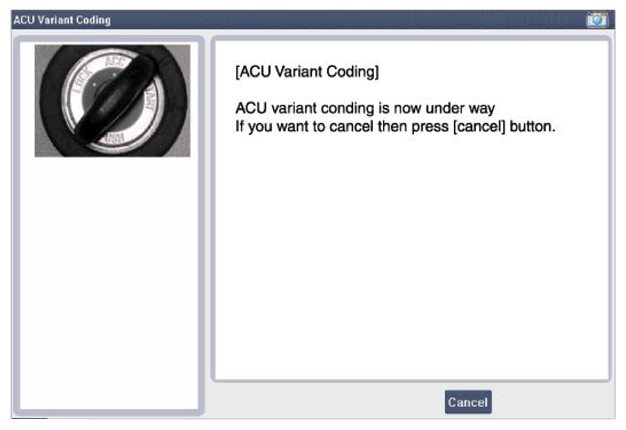

5. Variant Coding's proceeding screen-2

  Fig 12: Screen Display - ACU Variant Coding Proceeding Screen 2
  Courtesy of HYUNDAI MOTOR AMERICA

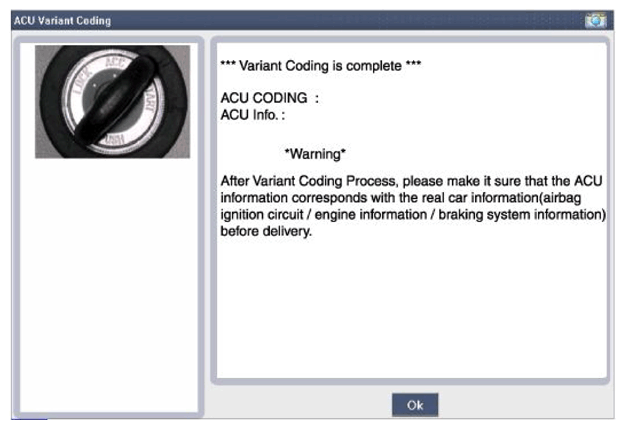

6. Variant Coding is completed

  Fig 13: Screen Display - Variant Coding Is Complete
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:

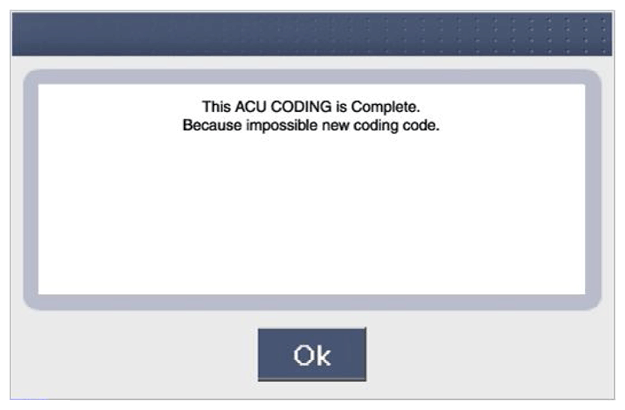

  1. This screen is displayed when you try variant coding on the SRSCM which has been performed before.

    Fig 14: Screen Display - ACU Coding Is Complete
    Courtesy of HYUNDAI MOTOR AMERICA
