Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the rear blower unit assembly.

    (Refer to Heating, Ventilation and Air Conditioning - "REAR BLOWER UNIT ")

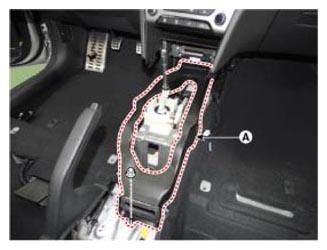

    Fig 1: Removing Rear Blower Unit Assembly With Nut
    G11407754Courtesy of HYUNDAI MOTOR AMERICA
  5. Pull up the lock (B) of the SRSCM connector to disconnect the connector.

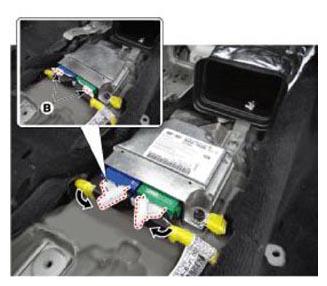

    Fig 2: Pulling Up Lock Of SRSCM Connector
    G11407755Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM (A) after loosening the mounting nuts.

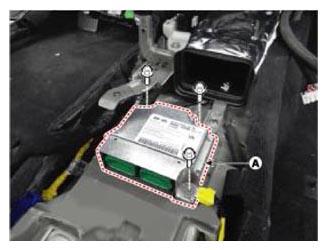

    Fig 3: Removing SRSCM With Mounting Nuts
    G11407756Courtesy of HYUNDAI MOTOR AMERICA
