Supplemental Restraint System Control Module (SRSCM)
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

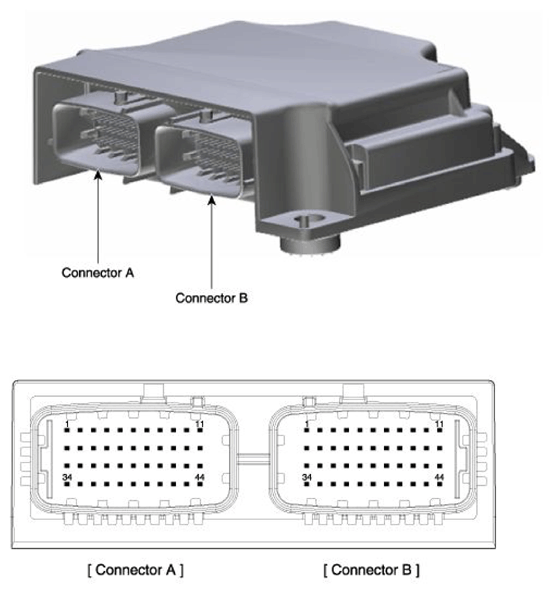

| No | Connector A | Connector B |
|---|---|---|
| 1 | IGN 1 | Driver Curtain Airbag (+) |
| 2 | - | Driver Curtain Airbag (-) |
| 3 | Driver airbag #1 (+) | Passenger Curtain Airbag (-) |
| 4 | Driver airbag #1 (-) | Passenger Curtain Airbag (+) |
| 5 | Passenger airbag #1 (-) | Driver Side Airbag (+) |
| 6 | Passenger airbag #1 (+) | Driver Side Airbag (-) |
| 7 | Passenger airbag active vent (+) | Passenger Side Airbag (-) |
| 8 | Passenger airbag active vent (-) | Passenger Side Airbag (+) |
| 9 | Driver knee airbag (-) | - |
| 10 | Driver knee airbag (+) | - |
| 11 | C-CAN (Low) | - |
| 12 | - | GND |
| 13 | - | - |
| 14 | - | Driver emergency fastening device (-) |
| 15 | - | Driver emergency fastening device (+) |
| 16 | - | Passenger emergency fastening device (+) |
| 17 | - | Passenger emergency fastening device (-) |
| 18 | - | Front driver seat belt pretensioner (-) |
| 19 | - | Front driver seat belt pretensioner (+) |
| 20 | - | Front passenger seat belt pretensioner (+) |
| 21 | - | Front passenger seat belt pretensioner (-) |
| 22 | C-CAN (High) | P-CAN (Low) |
| 23 | - | Rear driver side airbag (+) |
| 24 | - | Rear driver side airbag (-) |
| 25 | - | Rear passenger side airbag (-) |
| 26 | - | Rear passenger side airbag (+) |
| 27 | - | - |
| 28 | - | Rear driver gravity side impact sensor (+) |
| 29 | GND | Rear driver gravity side impact sensor (-) |
| 30 | - | - |
| 31 | - | - |
| 32 | Driver Airbag #2 (+) | Driver seat belt buckle switch (+) |
| 33 | Driver Airbag #2 (-) | P-CAN (High) |
| 34 | - | Front driver gravity side impact sensor (+) |
| 35 | Passenger airbag telltail lamp | Front driver gravity side impact sensor (-) |
| 36 | - | Front passenger gravity side impact sensor (+) |
| 37 | Crash output (Signal) | Front passenger gravity side impact sensor (-) |
| 38 | Seat belt reminder | Driver pressure side impact sensor (-) |
| 39 | Front driver Impact sensor (+) | Driver pressure side impact sensor (+) |
| 40 | Front driver Impact sensor (-) | Passenger Pressure side impact sensor (+) |
| 41 | Passenger driver Impact sensor (+) | Passenger Pressure side impact sensor (-) |
| 42 | Passenger driver Impact sensor (-) | Rear passenger gravity side impact sensor (+) |
| 43 | Passenger airbag #2 (+) | Rear passenger gravity side impact sensor (-) |
| 44 | Passenger airbag #2 (-) | Passenger seat belt buckle switch (+) |
