Occupant Classification System (OCS) Unit

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Disconnect the occupant classification system unit connector (A).

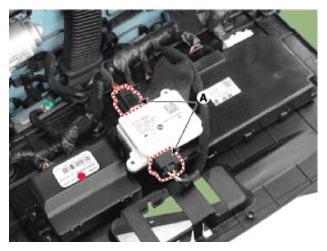

    Fig 1: Locating Occupant Classification System Unit Connectors
    G11407788Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the occupant classification system unit bracket (A) after loosening the mounting screws.

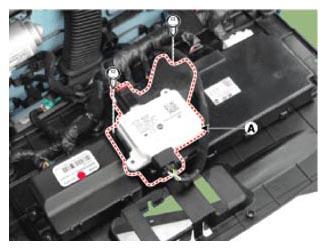

    Fig 2: Removing Occupant Classification System Unit Bracket With Mounting Screws
    G11407789Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the occupant classification system unit (A) from the bracket after loosening the mounting screws

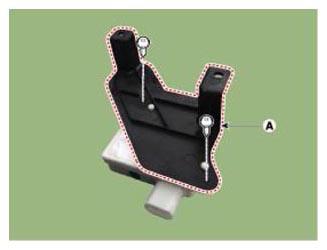

    Fig 3: Removing Occupant Classification System Unit With Mounting Screws
    G11407790Courtesy of HYUNDAI MOTOR AMERICA
